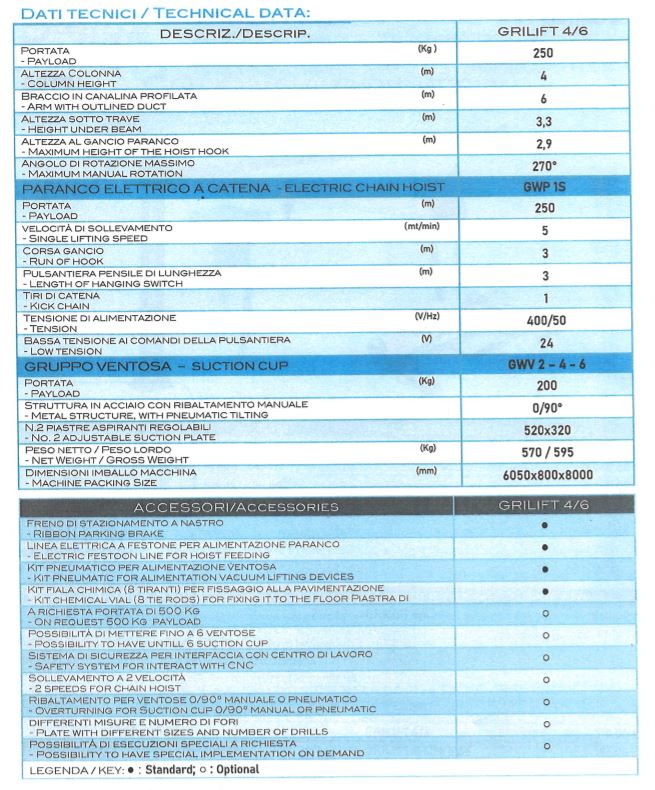

DESCRIPTION - GRILIFT 4/6
Payload: 250 Kg
Column height: 4M
Arm with outlined duct: 6M
Height under the beam: 3.3 M
Max Height hook angle: 2.9M
Max. maximum rotation angle: 270º
ELECTRIC CHAIN HOST - GWP 1S
Payload - 250 kg
Single lifting speed: 5Mt / Min
Hook course: 3M
Hanging switch length: 3M
Kick chain: 1
Voltage: 400V and 5o HZ
Lower voltage: 24V
SUCTION CUP GWV 2-4-6
Payload: 250Kg
Metal structure with pneumatic inclination: 0-90º
2- suction plates with 520x320
Weight: 570 kg
Description
DESCRIPTION - GRILIFT 4/6 Payload: 250 Kg Column height: 4M Arm with outlined duct: 6M Height under the beam: 3.3 M Max Height hook angle: 2.9M Max. maximum rotation angle: 270º ELECTRIC CHAIN HOST - GWP 1S Payload - 250 kg Single lifting speed: 5Mt / Min Hook course: 3M Hanging switch length: 3M Kick chain: 1 Voltage: 400V and 5o HZ Lower voltage: 24V SUCTION CUP GWV 2-4-6 Payload: 250Kg Metal structure with pneumatic inclination: 0-90º 2- suction plates with 520x320 Weight: 570 kg
